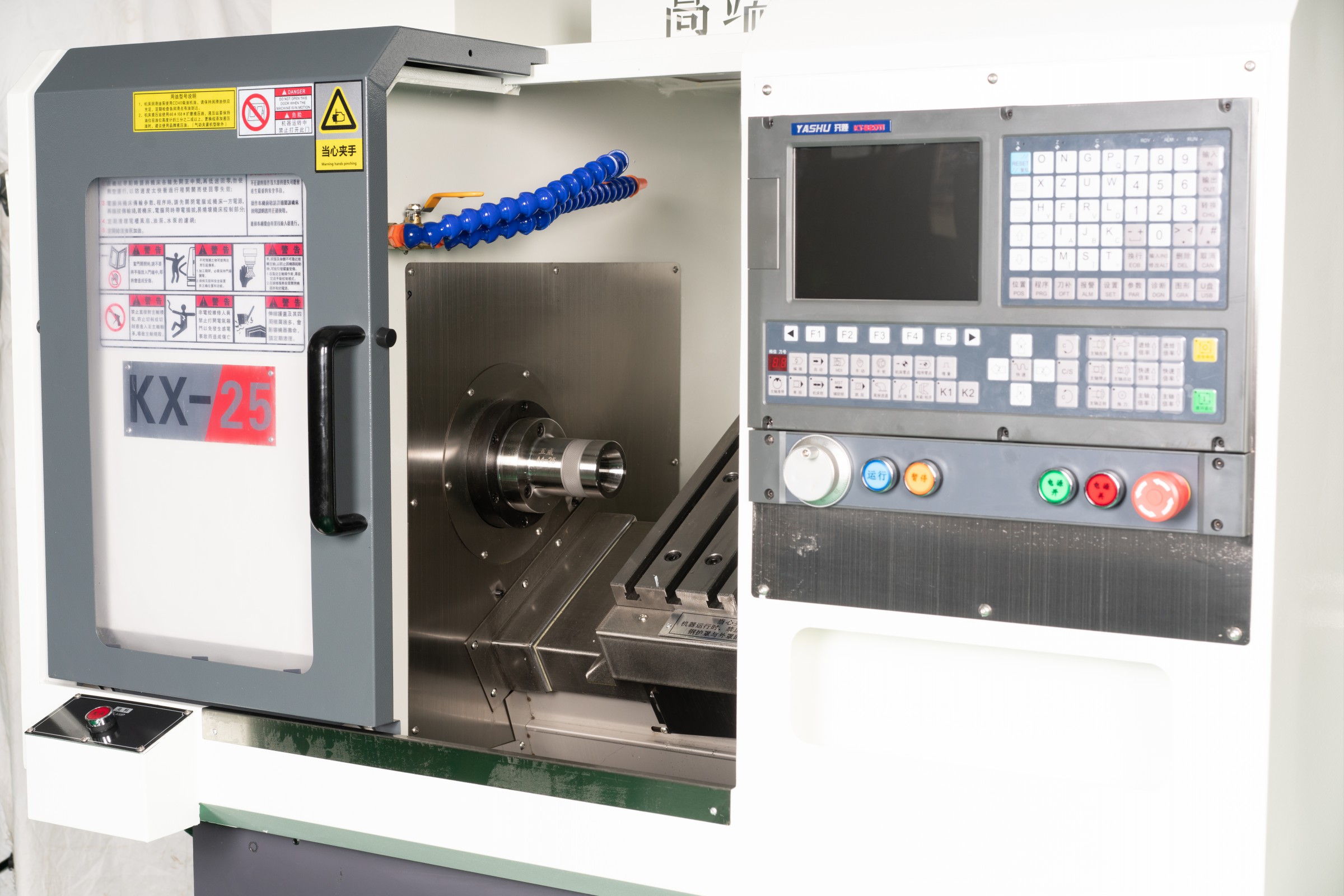

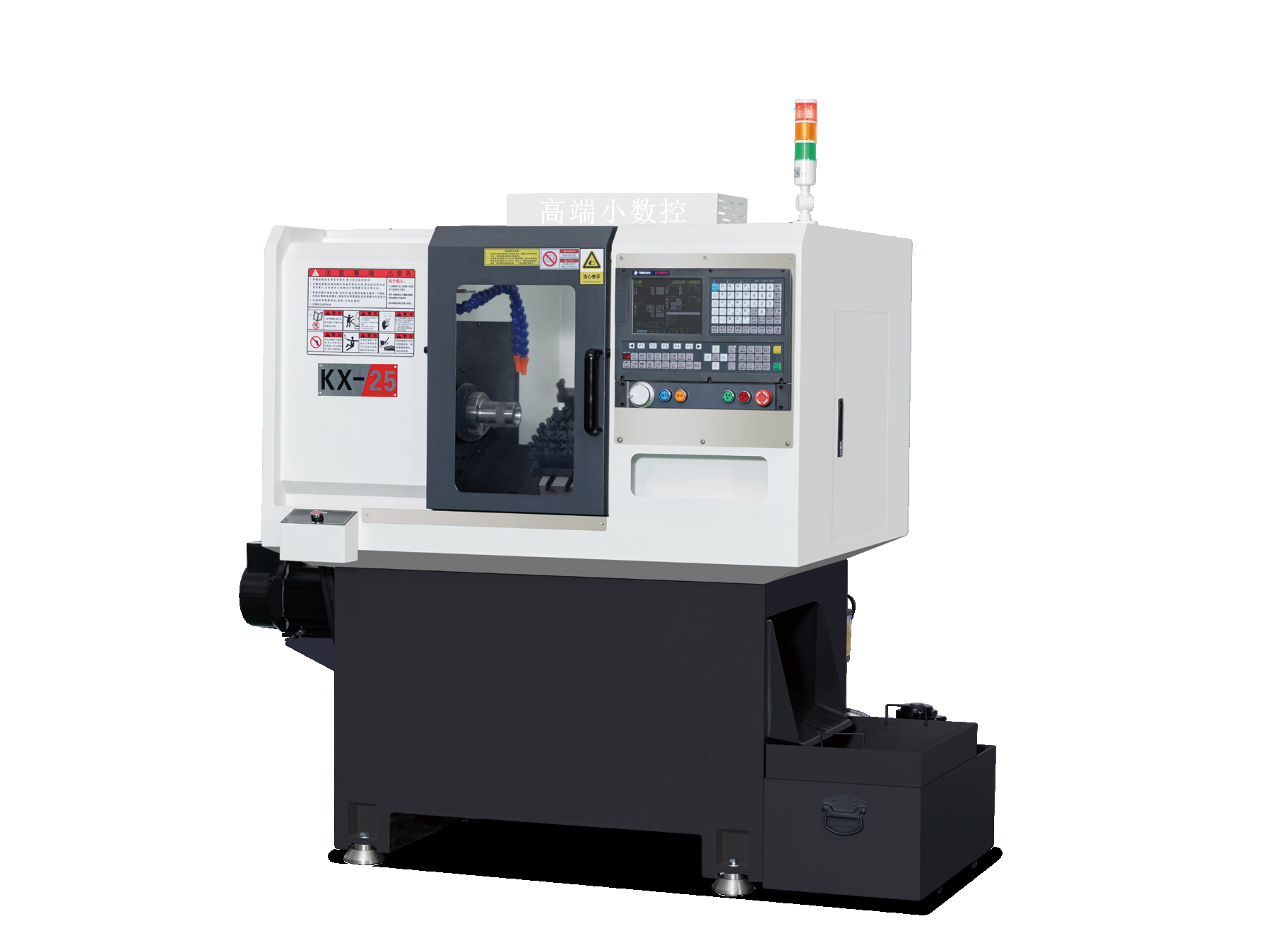

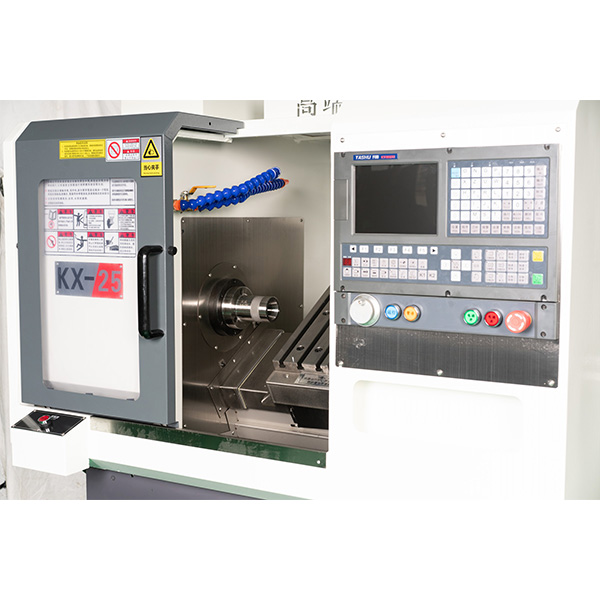

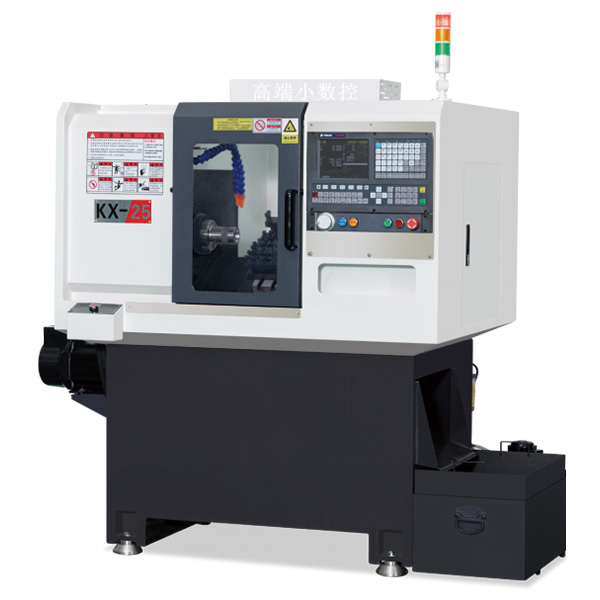

KX-25 Small CNC Metal Lathe Machine

KX-25 is suitable for mass production of bar material within 25mm, and automatic mass production of particle feeding of forging and punching parts within 50mm by opening mode. It can also install hydraulic chuck to achieve single production of parts within 250mm. The maximum speed of the spindle reaches 4500RPM. It can be equipped side and end live tools, fly cutter andguide bush to meet the requirements of drilling, slotting, turning, milling and threading.

Technical Data

Application scope of processing		Normal Use Value	Maximum Value

Working Ability	Spindle bore	φ25mm	φ25mm
	Maximum particle diameter (disc type)	200mm	300mm
	Maximum length of workpiece to be processed	150mm	180mm
	Single side cutting of stainless steel	2mm	2.5mm
	Repositioning accuracy	±0.01mm
	smooth finish	1.6RA
	High center of tool rest	40mm
	Turning diameter	φ350mm
	Square tool specification	16mm
Travel	X axis travel	500mm
	Z axis travel	180mm
Feed	X-axis fast moving velocity	25m/min	30m/min
	Z-axis fast moving velocity	25m/min	30m/min
	X axis servo power	1.3KW
	Z axis servo power	1.3KW
Spindle	Spindle speed	3500r/min	4000r/min
	Spindle motor power	2.2KW

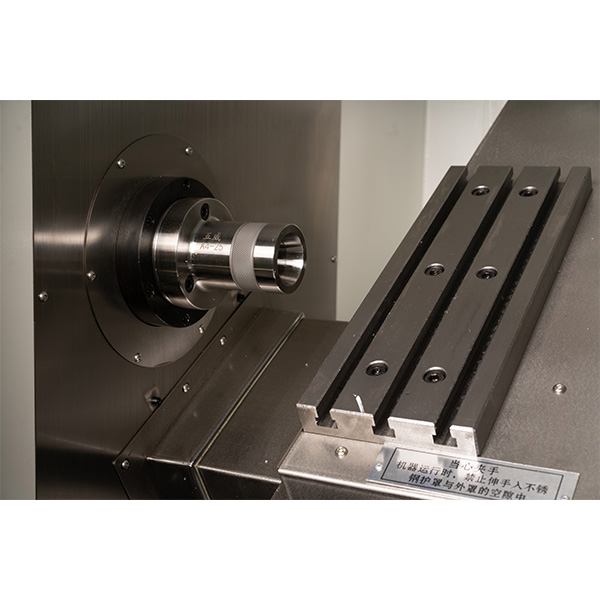

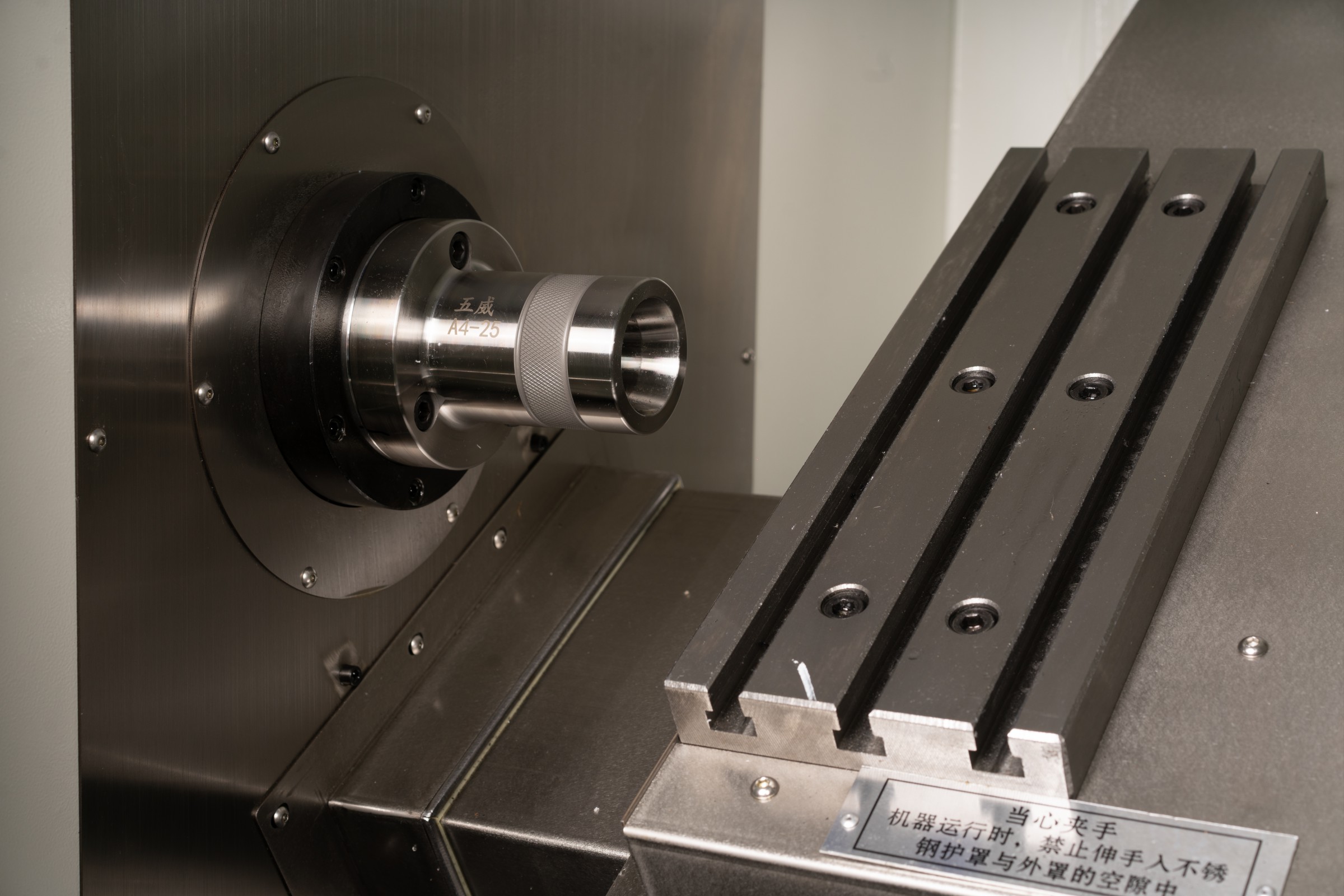

	spindle nose	A2-4
	Support hydraulic chuck size	5 inch	6 inch
Dimensional & Weight	Dimensions	1700×1400×1600 mm
	Weight	1500KG

Machinery Specification

Specification	Parameter	Optional
Slant bed degree	30°
Tool form	Row of knives
Guide rail	Taiwan Hiwin 25Linear guideway
Ball screw	Taiwan 25 ball grinding precision
Ground to spindle center height	1080mm
Spindle motor	2.2kw
CNC Control System	NANJINGKT 820Ti	SYNTEC/GSK/LNC
Clamping way	Hydraulic clamping

Product Characteristics

1. Strong adaptability to the processing object, adapt to the characteristics of mold and other products single piece production, for the mold manufacturing provides a suitable processing method.

2. When machining parts change, generally only need to change the numerical control program, can save production preparation time.

3. Machine tools are highly automated, it can reduce the intensity of labor.

4. Strong process performance, CNC lathes can be used for both rough machining and finishing, can be in a clamping to complete all or most of its processes.

5. Machining parts with high precision and stable quality.

6. Variety of optional accessories, can be finished in different shapes.

7. Suitable for processing small parts products, high precision requirement.

8. Can be used for mass production and processing of workpiece.

9. High production efficiency.

Optional accessories

Fly Cutter

Hydraulic Chuck

Guide Bush

Oil Bar Feeder

Multi Bar Feeder

Product Application

It is suitable for batch production and app lication of copper, iron, aluminum and stain less steel bars within 25mm, and automatic batch production of forging parts and other granu les within 50mm. Adopts a number of patented technologies such as high rigidity and anti-deformation structure, which is suitable for processing products with single-side cutting amount less than 2mm, precision tolerance within ±0.01mm and finish degree of 1.6.Widely used in hard rail CNC lathe, CAM automatic lathe and hydraulic lathe upgrading, automatic production to save labor costs and improve the quality of products.
