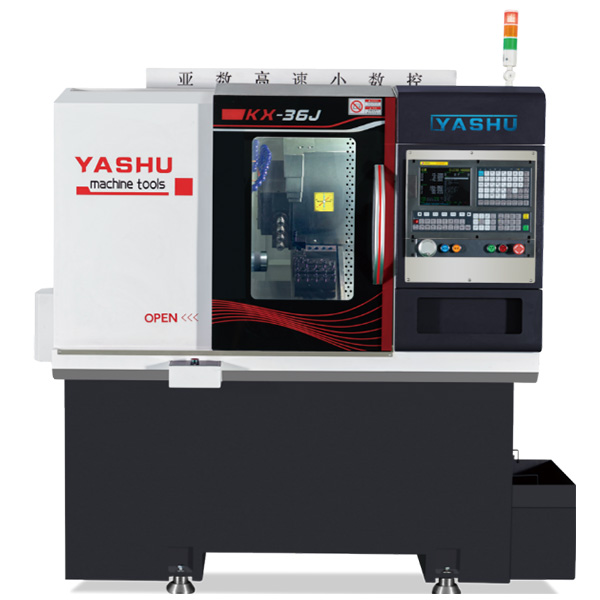

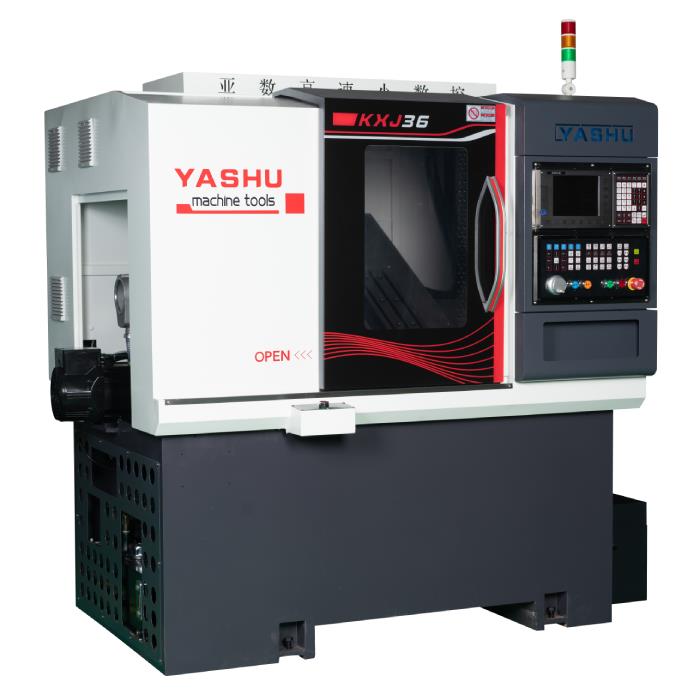

KX-36J Horizontal Mini CNC Lathe Machine
KX-36J is suitable for mass production of bar material within 35mm, and automatic mass production of particle feeding of forging and punching parts within 50mm by opening mode. It can also install hydraulic chuck to achieve single production of parts within 250mm. The maximum speed of the spindle reaches 4500RPM. It can be equipped with y axis, side and end live tools, fly cutter andguide bush to meet the requirements of drilling, slotting, turning, milling and threading.
Technical Data


Application scope of processingNormal Use ValueMaximum Value
Working AbilitySpindle boreφ35mmφ35mm
Maximum particle diameter
(disc type)
250mm300mm
Maximum length of workpiece to be processed210mm230mm
Single side cutting of
stainless steel
2mm3mm
Repositioning accuracy  ±0.01mm
smooth finish1.6RA
High center of tool rest40mm
Turning diameterφ350mm
Square tool specification16mm
Travel X axis travel 600mm
Z axis travel230mm
FeedX-axis fast moving velocity25m/min30m/min
Z-axis fast moving velocity25m/min30m/min
X axis servo power1.3KW
Z axis servo power1.3KW
SpindleSpindle speed3500r/min4000r/min
Spindle motor power3KW
spindle nose
A2-4
Support hydraulic chuck size6 inch8inch
Dimensional & WeightDimensions1700×1400×1800 mm
Weight1800KG


Machinery Specification
Specification ParameterOptional
Slant bed degree30°

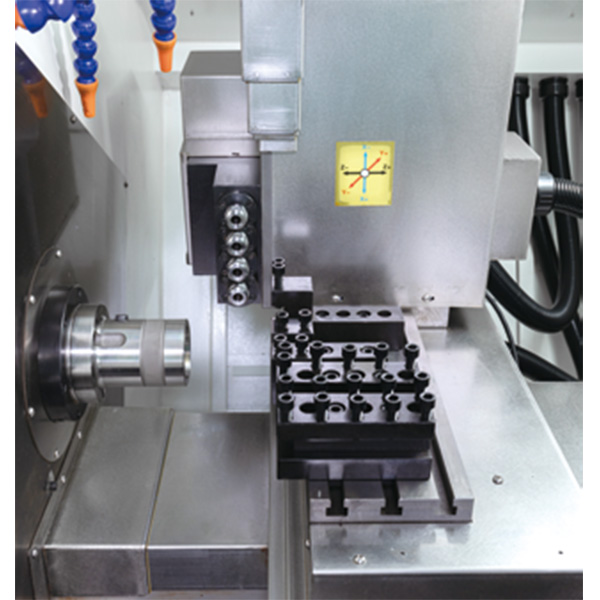

Tool formRow of knives
Guide railTaiwan Hiwin 25Linear guideway
Ball screwTaiwan 25 ball grinding precision
Ground to spindle center height1080mm
Spindle motor3.7kw
CNC Control SystemNANJINGKT 820TiSYNTEC/GSK/LNC
Clamping wayHydraulic clamping


Product Characteristics

1. Strong adaptability to the processing object, adapt to the characteristics of mold and other products single piece production, for the mold manufacturing provides a suitable processing method.

2. When machining parts change, generally only need to change the numerical control program, can save production preparation time.

3. Machine tools are highly automated, it can reduce the intensity of labor.

4. Strong process performance, CNC lathes can be used for both rough machining and finishing, can be in a clamping to complete all or most of its processes.

5. Machining parts with high precision and stable quality.

6. Variety of optional accessories, can be finished in different shapes.

7. Suitable for processing small parts products, high precision requirement.

8. Can be used for mass production and processing of workpiece.

9. High production efficiency.

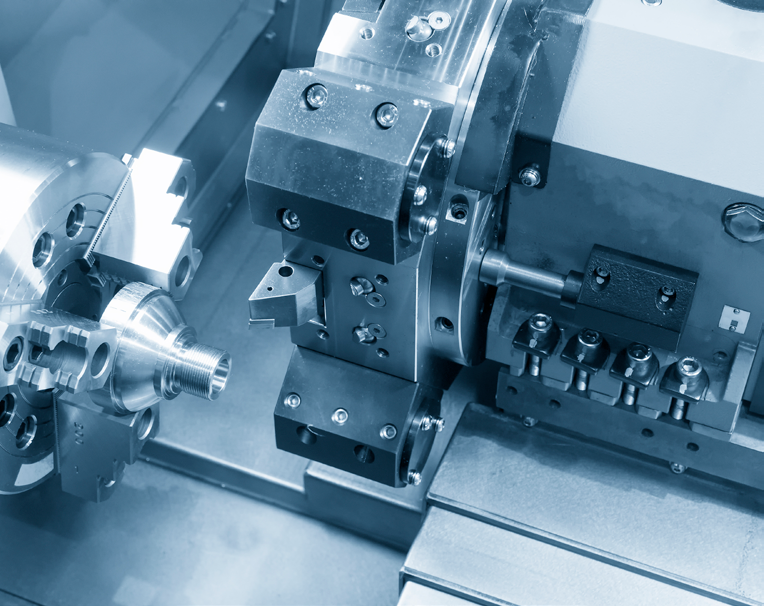

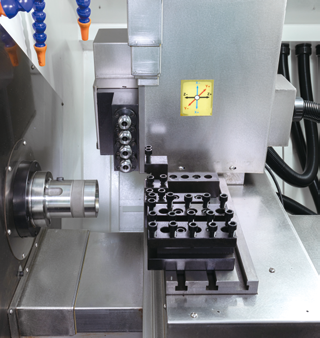

  turret.png  KX-36J-Y-1.png


Optional accessories
Fly Cutter
Fly Cutter
Hydraulic Chuck
Hydraulic Chuck
Guide Bush
Guide Bush
Oil Bar Feeder
Oil Bar Feeder
Multi Bar Feeder
Multi Bar Feeder
Turret
Turret
Product Application
Suitable for mass production of copper, iron, aluminum, stainless steel bar material within 35mm, and automatic mass production of open forging and punching parts within 50mm, can also be installed hydraulic chuck to achieve the production of single parts within 250mm. Adopt a number of patented technologies such as high rigidity, anti-deformation structure, suitable for machining unilateral cutting amount within 2mm, precision tolerance within ±0.01mm, finish within 1.6 products. Widely used in hard rail CNC lathe, with 36J CNC lathe small parts to replace the application, to improve the efficiency and cost-efficiency ratio.
Hydraulic pressure station

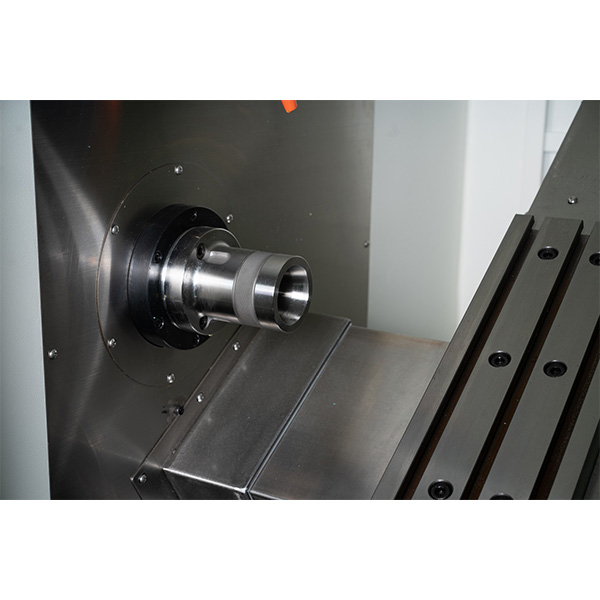

Spindle installation is treated with dynamic balance
Patented deformation-resistant heavy-duty base
