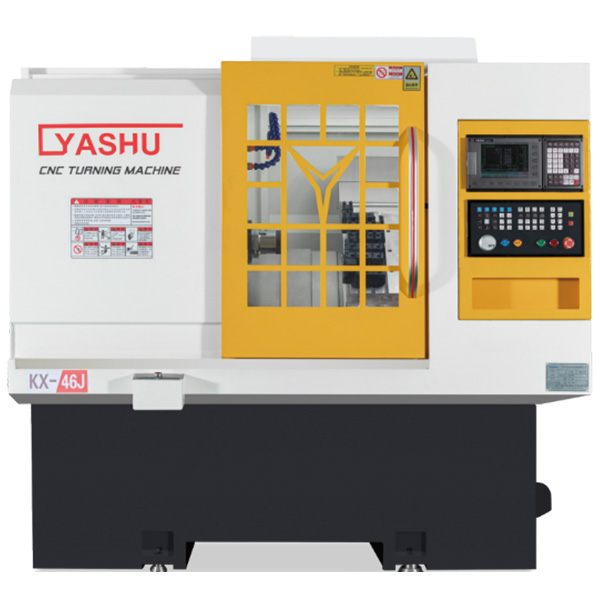

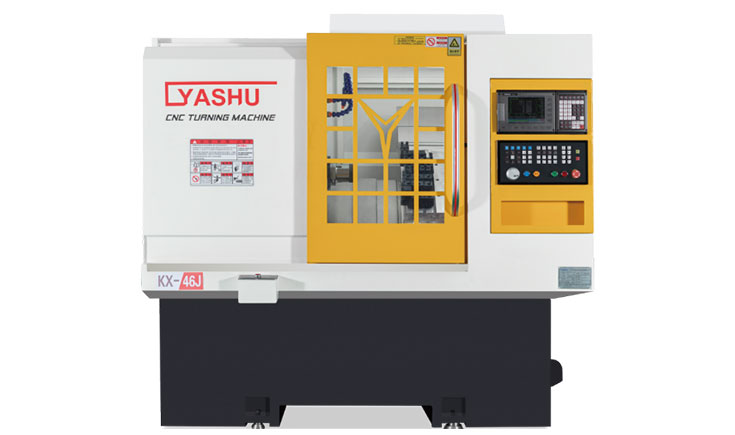

KX-46Z CNC Lathe Turning & Milling Machine

The key components are equipped with high quality wear-resistant equipment such as Taiwan, and the spindle installation is treated with dynamic balance.

Technical Data

Application scope of processing		Normal Use Value	Maximum Value

Working Ability	Spindle bore	φ45mm	φ45mm
	Maximum particle diameter (disc type)	400mm	420mm
	Maximum length of workpiece to be processed	300mm	320mm
	Single side cutting of stainless steel	3mm	4.5mm
	Repositioning accuracy	±0.0015mm
	smooth finish	1RA	1.6RA
	High center of tool rest	50mm
	Turning diameter	φ420mm
	Square tool specification	20*20mm
Travel	X axis travel	900mm
	Z axis travel	300mm
Feed	X-axis fast moving velocity	25m/min	30m/min
	Z-axis fast moving velocity	25m/min	30m/min
	X axis servo power	1.5KW
	Z axis servo power	1.5KW
Spindle	Spindle speed	3500r/min	4000r/min
	Spindle motor power	5.5KW	7.5KW
	spindle nose	A2-5
	Support hydraulic chuck size	8 inch	10inch
Dimensional & Weight	Dimensions	2100×1500×1900 mm
	Weight	2350KG

Machinery Specification

Specification	Parameter	Optional
Slant bed degree	30°
Tool form	Row of knives
Guide rail	Taiwan Hiwin 30 Linear guideway
Ball screw	Taiwan 32 ball grinding precision
Ground to spindle center height	1080mm
Spindle motor	5.5kw

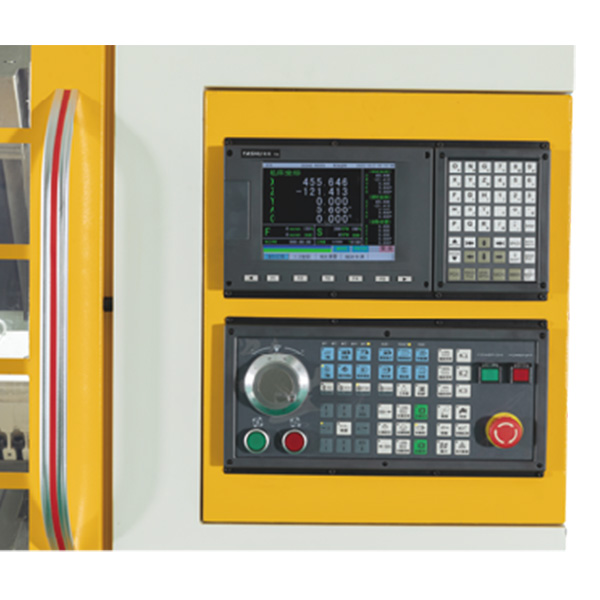

CNC Control System	NANJINGKT 820Ti	SYNTEC/GSK/LNC
Clamping way	Hydraulic clamping

Product Characteristics

1. Strong adaptability to the processing object, adapt to the characteristics of mold and other products single piece production, for the mold manufacturing provides a suitable processing method.

2. When machining parts change, generally only need to change the numerical control program, can save production preparation time.

3. Machine tools are highly automated, it can reduce the intensity of labor.

4. Strong process performance, CNC lathes can be used for both rough machining and finishing, can be in a clamping to complete all or most of its processes.

5. Machining parts with high precision and stable quality.

6. Variety of optional accessories, can be finished in different shapes.

7. Suitable for processing small parts products, high precision requirement.

8. Can be used for mass production and processing of workpiece.

9. High production efficiency.

Optional accessories

Fly Cutter

Hydraulic Chuck

Guide Bush

Oil Bar Feeder

Multi Bar Feeder

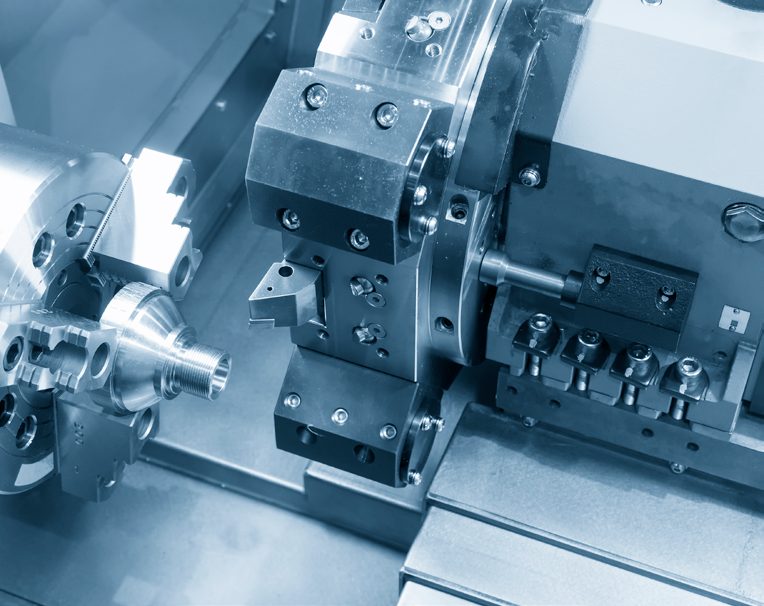

Turret

Product Application

Suitable for mass production of copper, iron, aluminum, stainless steel bar material within 45mm, and automatic mass production of open forging and punching parts within 50mm, can also be installed hydraulic chuck to achieve the production of single parts within 250mm. Adopt a number of patented technologies such as high rigidity, anti-deformation structure, suitable for machining unilateral cutting amount within 2mm, precision tolerance within ±0.01mm, finish within 1.6 products. Widely used in hard rail CNC lathe, with 46 CNC lathe small parts to replace the application, to improve the efficiency and cost-efficiency ratio.
