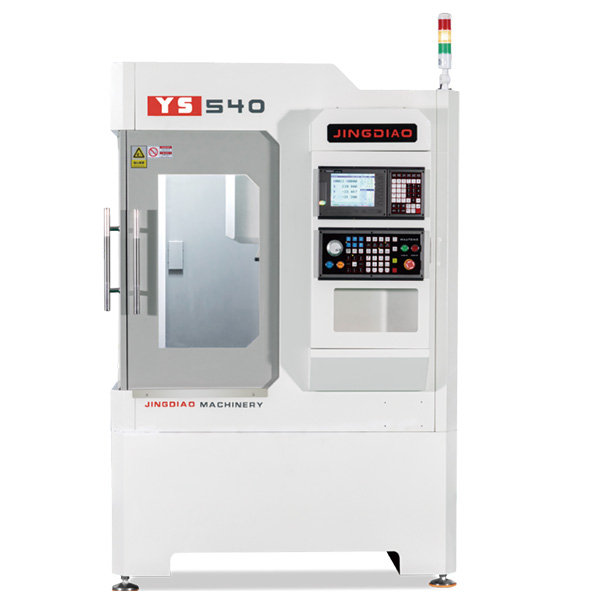

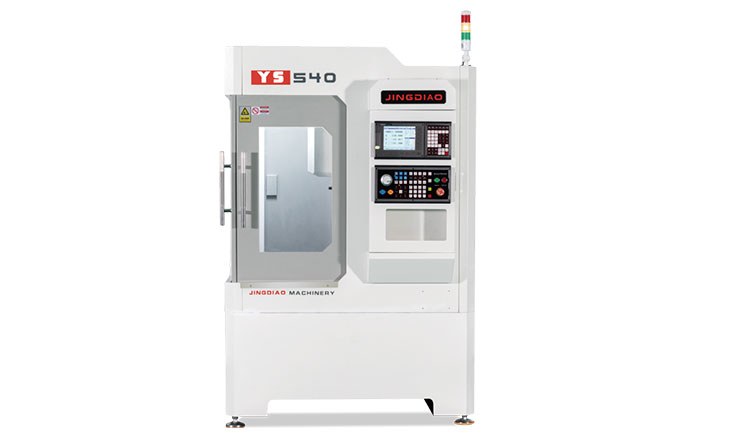

YS-540 High Speed Small CNC Milling Center
Drilling and tapping machine has the main characteristics of high speed, high precision, high efficiency, reliability, high safety factor, suitable for batch processing and production of small hardware parts. Set cutting, drilling, tapping as one of the working efficiency and high precision machine tools is derived from the traditional metal cutting machine tools. Vertical machining center (computer gong) derived from the floor area and processing stroke is smaller than the traditional vertical machining center, mainly used for processing light small metals.
Contact Us
Technical Data
Application scope of processingNormal Use ValueMaximum Value
processing capability
maximum drilling diameter(mm)Aluminum ф 14 / steel ф 10Aluminum ф 18 / steel ф 14
maximum tapping diameter(mm) Aluminum m10 / steel m 8Aluminum m 12 / steel m 10
Maximum milling
cutter diameter (mm)		ф60ф100
speed of spindle5000 rpmOptional 9000rpm/30000rpm
taper hole of spindleBT30

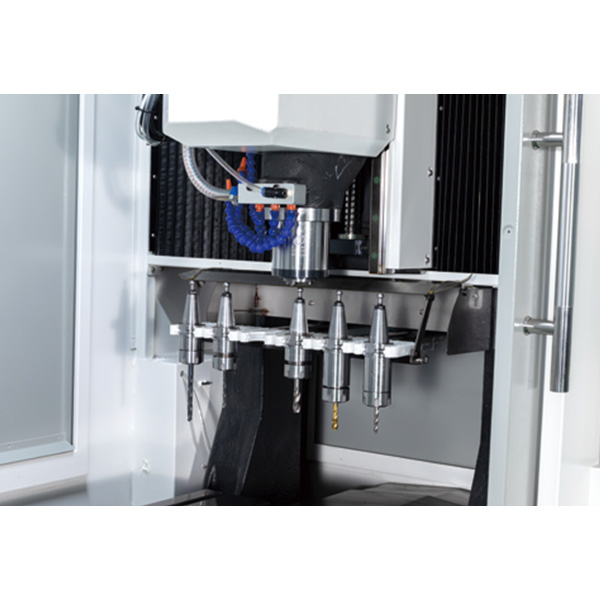

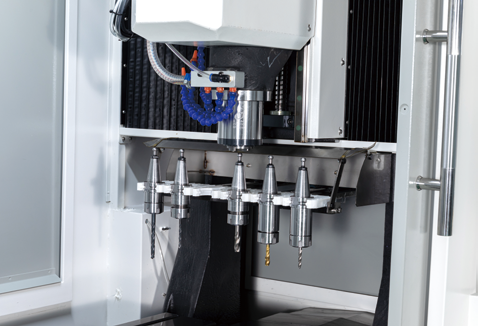

Tool magazine capacity 68
repeated positioning accuracy0.01 mm0.01 mm
Surface engraving accuracy±0.06Optional ±0.01
 workbenchDistance from table to
spindle end		150mm350mm
Effective stroke of countertop500*400mm
TravelX-axis400mm
Y-axis500mm
Z-axis200mm
FeedX-axis fast moving velocity25m/min35m/min
Y-axis fast moving velocity25m/min35m/min
Z-axis fast moving velocity20m/min25m/min
Various cutting
 suggested speeds		8m/min10m/min
SpindleSpindle power2.6kwOptional  3.9kw/4.5kw
Spindle typeMechanical spindleOptional  motorized spindle
Spindle taperBT30
Dimensional &
 weight		Dimensions1350×1050×2050 mm
Weight1900KG


Machine tool specifications and component items
Specification ParameterOptional
Guide railTaiwan Hiwin 25 Linear guideway
Ball screwTaiwan 25 ball grinding precision

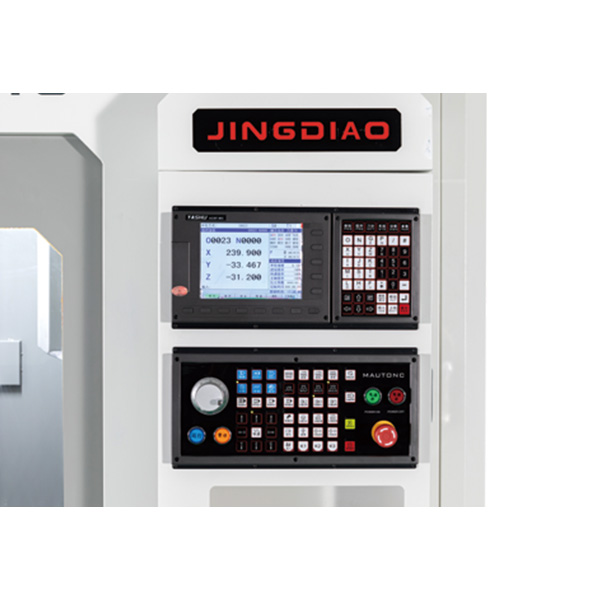

CNC Control SystemHUAZHONGSYNTEC/GSK
Optional 4 axis center height125mm/170mm
Optional 4 axis motor power
0.75kW/1.2kW
Optional 4 axis system
HUAZHONGSYNTEC/GSK
Optional 4 axis servo
HUAZHONGSYNTEC/GSK
Optional 5 axis center height160mm
Optional 5 axis motor power
0.4kW/0.75kW
Optional 5 axis system
HUAZHONGSYNTEC/GSK
Optional 5 axis servo
HUAZHONGSYNTEC/GSK


Product Characteristics

1. Patented deformation-resistant heavy-duty base with enough weight to support fast speeds.

2. Sufficient weight to support vibration resistance during rod processing to improve accuracy and finish.

3. A full set of electric power equipment is used to maximize the efficiency of electromechanical coordination.

4. Adopt Taiwan Shangyin precision high-speed linear guide rail and high precision P3 grinding ball screw. Ensure the machining accuracy of the product.

5. Variety of optional accessories, can be finished in different shapes.

6. Can be used for mass production and processing of workpiece.

7. Suitable for processing small parts products, high precision requirement.


     YS-540-1.png          machine.png   YS-650-2.png


Optional accessories

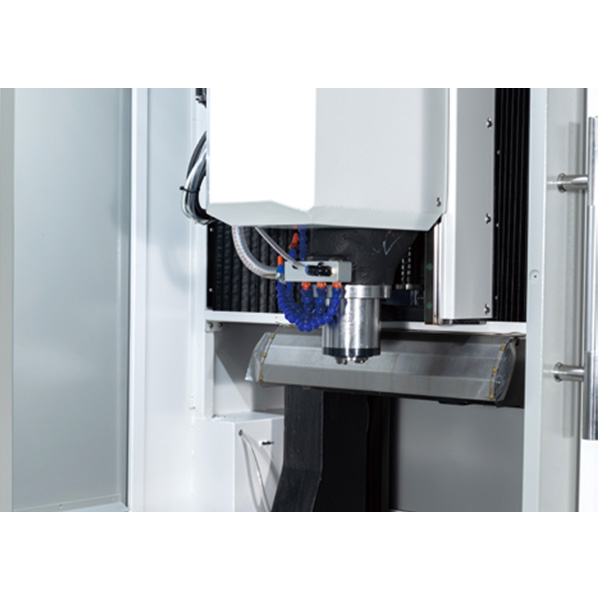

Add Five-axis Linkage
Add Five-axis Linkage

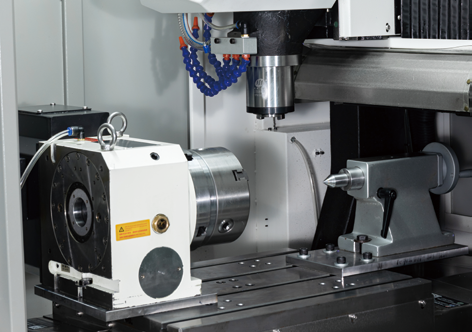

Fourth Axis
Fourth Axis
Product Application

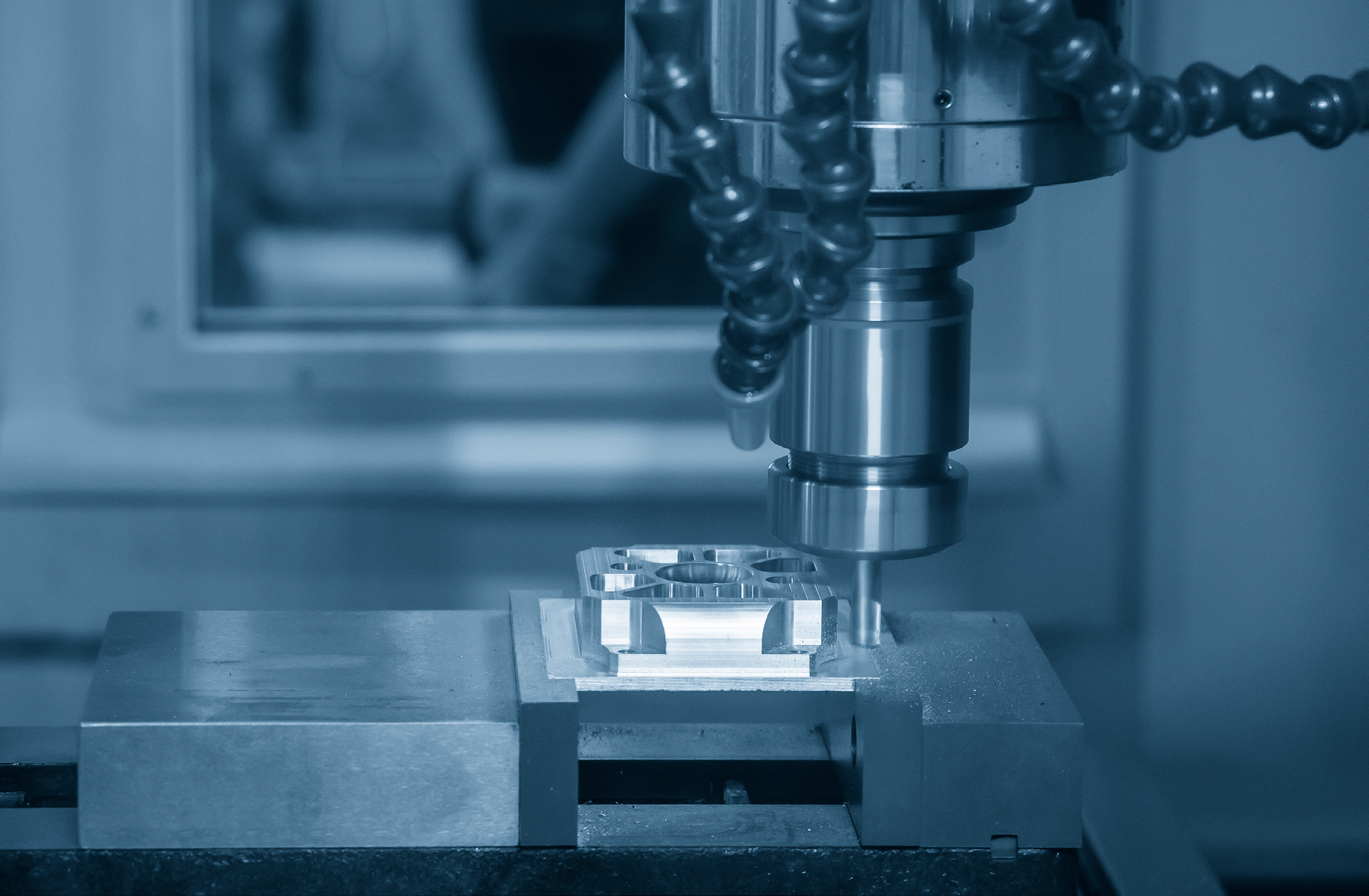

It is suitable for 8 station processing of copper, iron, aluminum and stainless steel workpiece within 500mmX400mm. The operation is compatible with the general machining center of the market. It supports drilling, tapping, milling, engraving and other functions. Using a number of patented technologies such as high rigidity, anti-deformation structure, suitable for stainless steel parts processing within 8mm tapping and drilling within 10mm, because of the small footprint, easy to improve the number of one pipe machine. Uniform output efficiency reduces processing costs.
